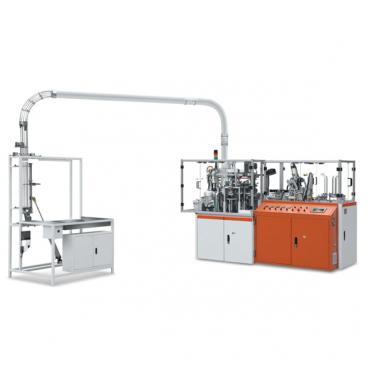

Production Speed 200 pcs/min Intelligent 16oz Paper Cup Making Machine
High-Speed and Precision for Large-Scale Paper Cup Production
Discover Machinery's proudly introduces the Production Speed 200 pcs/min Intelligent 16oz Paper Cup Making Machine, an advanced solution designed for high-speed and efficient paper cup production. Engineered for superior performance, this machine meets the growing demand for large-capacity paper cup manufacturing while ensuring precision, durability, and reliability.

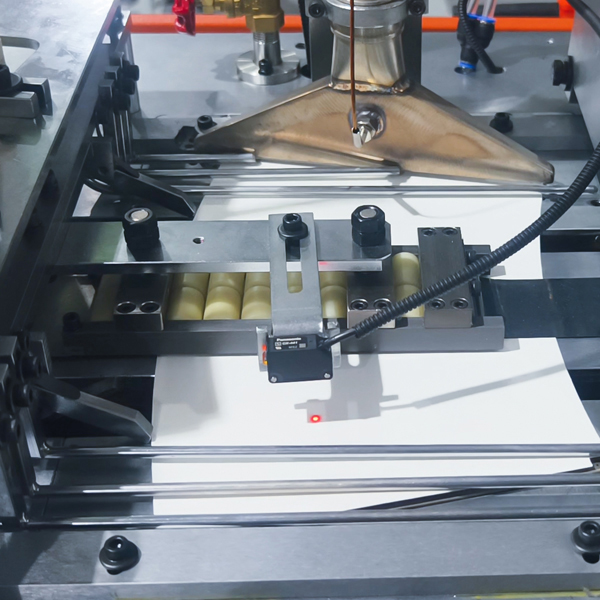

Paper feeding device
The paper feeding mechanism discharges the fan sheet on the paper supply holder through the suction cup, and the conveying mechanism then sends the fan sheet to the next position.

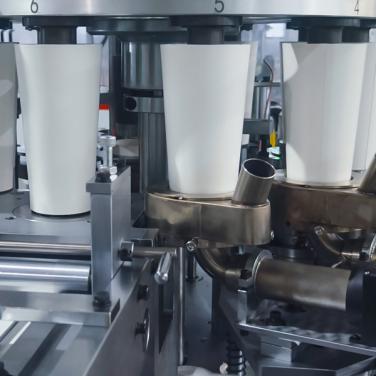

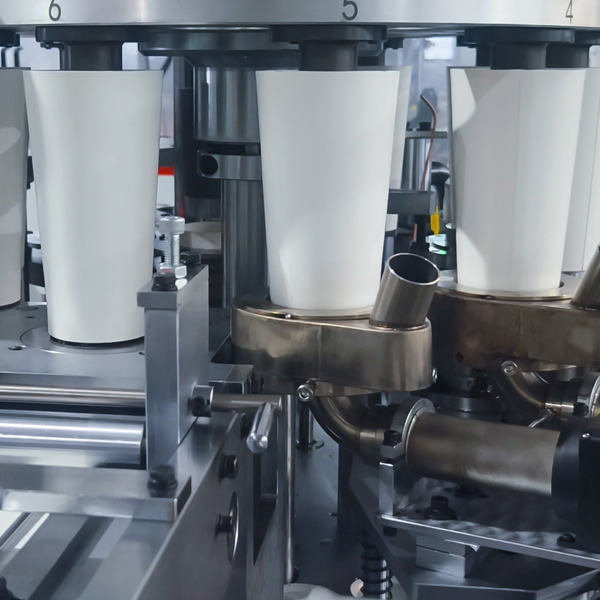

Cup body forming
After the fan-shaped piece reaches the designated position, through the leaf holding mechanism, the reciprocating motion of the holding hand is driven, and the fan-shaped piece is hugged around the mold, and the paper cup body is formed.After molding, the ultrasonic briquetting above the leaf holding mechanism moves down to compress the longitudinal seam, and the ultrasonic vibration heats up to melt the surface of the paper stacking part, and the longitudinal seam can be sealed after cooling

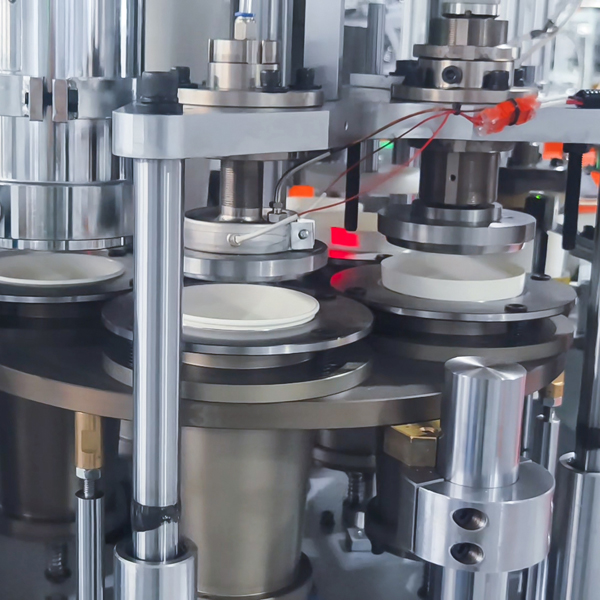

The bottom of the cup is formed
Through the web automatic feeding device and the circular punching mechanism, the bottom of the cup is punched and formed; After the bottom of the cup body is preheated and heated, the bottom of the cup is sealed with the cup body by the bottom rolling device
Cup mouth forming
After the bottom of the cup is formed, it is softened and lubricated at the oiling station to the cup mouth, and then the roll mouth station is turned, and after the cup mouth mold stamping on the pre-roll and re-roll positions, the final cup mouth is formed, and the quality of these parts directly affects the curling effect of the paper cup mouth, such as the flatness and tightness of the curling edge.
Key Features of the Intelligent 16oz Paper Cup Making Machine
1.Ultra-Fast Production Speed
This paper cup making machine operates at an impressive speed of 200 cups per minute, making it ideal for businesses that require large-scale production without compromising quality.
2.Fully Automatic Operation
The machine integrates an advanced automation system that streamlines the entire production process, from paper feeding and cup forming to bottom sealing, curling, and stacking.
3.Robust Cup Forming System
Equipped with a high-precision servo motor, the machine ensures stable operation, accurate cup formation, and strong side sealing for enhanced durability.
4.Heavy-Duty Construction
Built with high-quality materials, this machine offers exceptional longevity and reliability, minimizing maintenance requirements and operational downtime.
5.Versatile Paper Compatibility
Designed to handle both single and double PE-coated paper, this disposable paper cup making machine meets various industry demands, making it suitable for hot and cold beverages.
6.Energy-Efficient Performance
Optimized for reduced energy consumption, the machine ensures cost-effective operation while maintaining high output levels.
7.Intelligent Fault Detection
An advanced monitoring system automatically detects errors and alerts operators, preventing production delays and ensuring smooth operation.
8.User-Friendly Control Panel
The intuitive touchscreen interface allows for easy operation, real-time monitoring, and quick adjustments to production settings.
9.Consistent Cup Quality
With precise temperature and pressure control, the machine guarantees uniform cup thickness, smooth edges, and secure bonding, enhancing the overall product quality.
10.Reliable After-Sales Support
As a trusted paper cup machine manufacturer, Discover Machinery's provides comprehensive technical assistance, spare parts support, and maintenance services to ensure uninterrupted production.
Why Choose Discover Machinery's?
As an experienced paper cup machine manufacturer, Discover Machinery's is committed to delivering innovative, high-performance solutions for the disposable cup industry. Our paper cup making machine is engineered to meet the highest industry standards, ensuring efficiency, reliability, and cost-effectiveness. We understand the importance of quality and productivity, which is why our machines are designed to maximize output while minimizing operational costs.
For businesses looking for a professional disposable paper cup making machine, the Intelligent 16oz model offers the perfect combination of speed, precision, and durability. Contact us today to learn more about how our advanced solutions can enhance your production capabilities.
