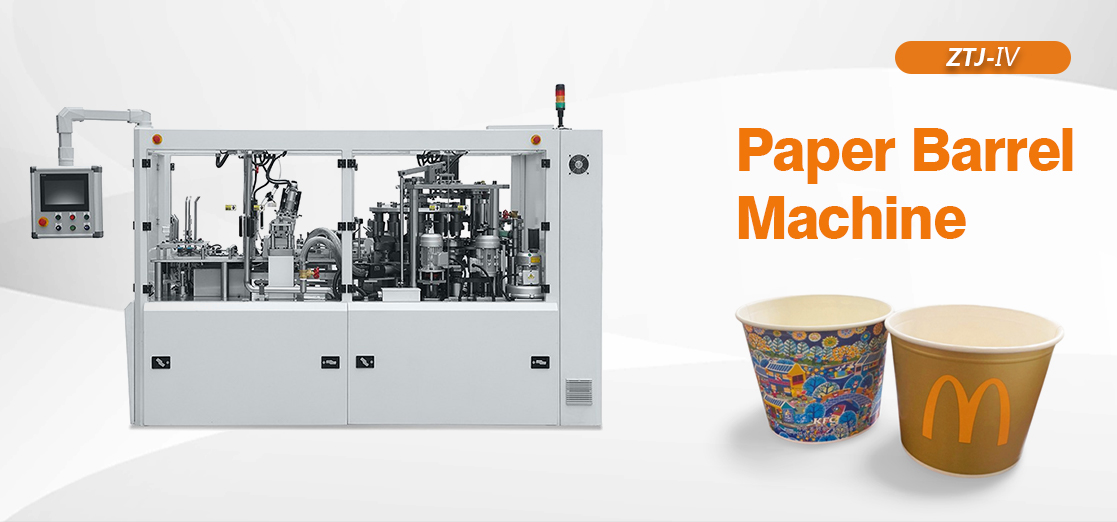

ZTJ - Ⅳ Automatic Paper Barrel Forming Machine can produce 80 paper bowl per minute, ZTJ - Ⅳ Automatic Paper Barrel Forming Machine produces paper container in sizes ranging from 85 ounces to 170 ounces.
Our strict quality control and the core components from Internationally renowned supplier ensure that ZTJ-Ⅳ can be efficiently produced for a long time.
Our strict quality control and the core components from Internationally renowned supplier ensure that ZTJ-Ⅳ can be efficiently produced for a long time.
ZTJ - Ⅲ Automatic Paper Barrel Forming Machine can be used to make popcorn barrel,barrel of KFC’s Bucket Meal.
The maximum capacity of paper container manufactured by our machine is up to 10L, which is very difficult to find in the market. Therefore, our machine have great competition advantage.
The maximum capacity of paper container manufactured by our machine is up to 10L, which is very difficult to find in the market. Therefore, our machine have great competition advantage.
|
Paper cup size |
2-16 oz |
|
Paper cup dimension |
(D)φ40-90mm (H)40-135mm
(d)φ30-75mm (h)3-15mm
|
|
Production speed |
140-160pcs/min
8,400-9,600pcs/min
67,200-76,800pcs/min
|
|
Weight |
5,300 kg |
|
Electrical |
3PH 380V |
|
Total power |
21KW |
|
Air consumption |
0.4cube/min |
|
Dimension of machine |
L2750*W1300*H1800mm |
|
Paper gram weight |
210-350gsm |
|
Paper type |
single PE or double PE |
